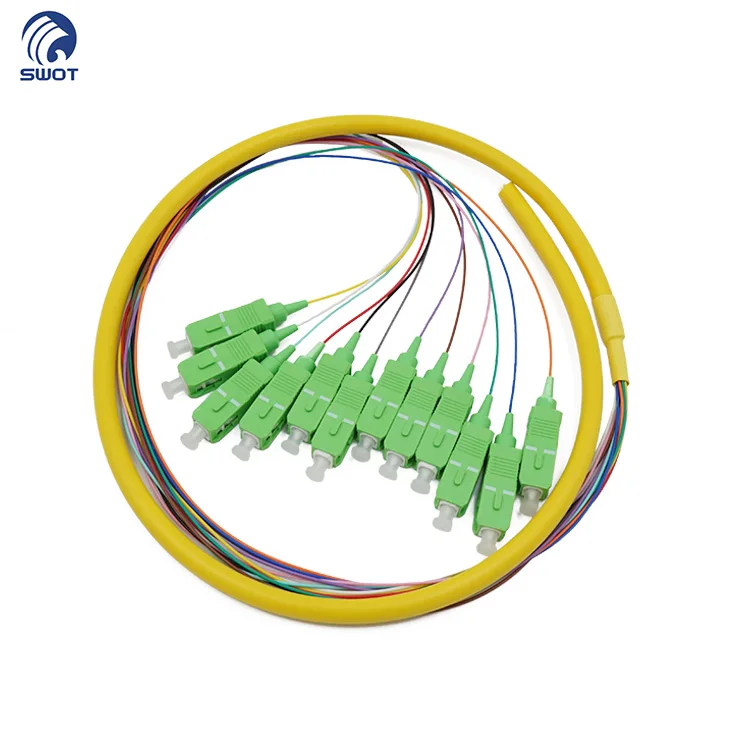

Manufacturing 12 Core SC/APC pigtail cable Single Mode optical fiber pigtail
Product Description
Product Description
Features: Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Application
Gigabit Ethernet; Active device termination; Telecommunication networks; Video; Multimedia; Premise installations; Local area networks; FTTH, FTTX applications; CATV.
Technical data
Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | MM | |||
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 | |||
Insection Loss (dB) | ≤0.2 (max≤0.3) | ||||||
Repeatability (dB) | ≤0.1 | ||||||
Durability (1/Matings) | ≥500 | ||||||
Operation Temperature (°C) | -25~+70 | ||||||
Tensile Strength(N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | ||||||
Fiber | 9/125um, 50/125um,62.5/125um,ect | ||||||
Diameter | 0.9mm, 2.0mm, 3.0mm etc | ||||||
Cable Material | PVC, LSZH | ||||||
Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc |
