---Good durability
---Good exchangeability
---High temperature stability
---Low insertion loss and back reflection loss
---Superior Quality Standard PC/UPC/APC Polishing
---Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Wanbao LC-LC fiber patch cord MM Duplex multimode patch cord LC connector 1m 3m 5m
Product Description
Product Description
Specifications
Optic fiber patch cord
1.SC,LC,FC,ST,MU,MTRJ,D4,DIP,E2000
2.0.9mm / 2.0mm / 3.0mm
3.SM/MM SX/DX
Feature
Applications
Gigabit Ethernet; Active device termination;
Telecommunication networks; Video; ODF
Multimedia; Premise installations; Local area networks;
FTTH FTTX applications; CATV
Telecommunication networks; Video; ODF
Multimedia; Premise installations; Local area networks;
FTTH FTTX applications; CATV

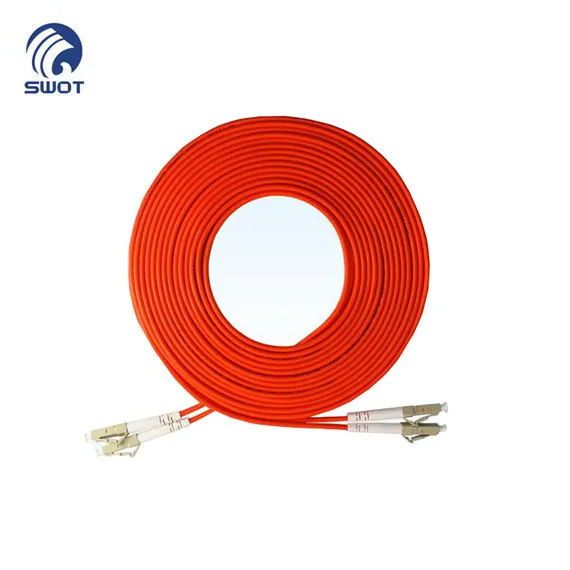

Product Image
Technical Data
Patch cord Connector | PC (SM) | UPC (SM) | APC (SM) | MM | |||
Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 | |||
Insertion Loss (dB) | ≤0.2 (max≤0.3) | ||||||
Repeatability (dB) | ≤0.1 | ||||||
Durability(1/Matings) | ≥500 | ||||||
Operation Temperature (°C) | -25~+70 | ||||||
Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | ||||||
Fiber | 9/125um, 50/125um,62.5/125um,ect | ||||||
diameter | 0.9mm 2.0mm, 3.0mm etc | ||||||
Cable material | PVC, LSZH | ||||||
Cores | Simplex, duplex, | ||||||
Related Products
Our Company
FAQ & Contact
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
