The fibers,250um, are positioned in a central tube made of a high modules plastic. The tubes are filled with a water-resistant
filling compound. Two paralled FRP and outer sheath as a non-metallic strength member.
Manufacturing Anatel ASU outdoor 12 core single mode fiber optic cable all- dielectric optic cable with ripcord
Product Description
Product Description

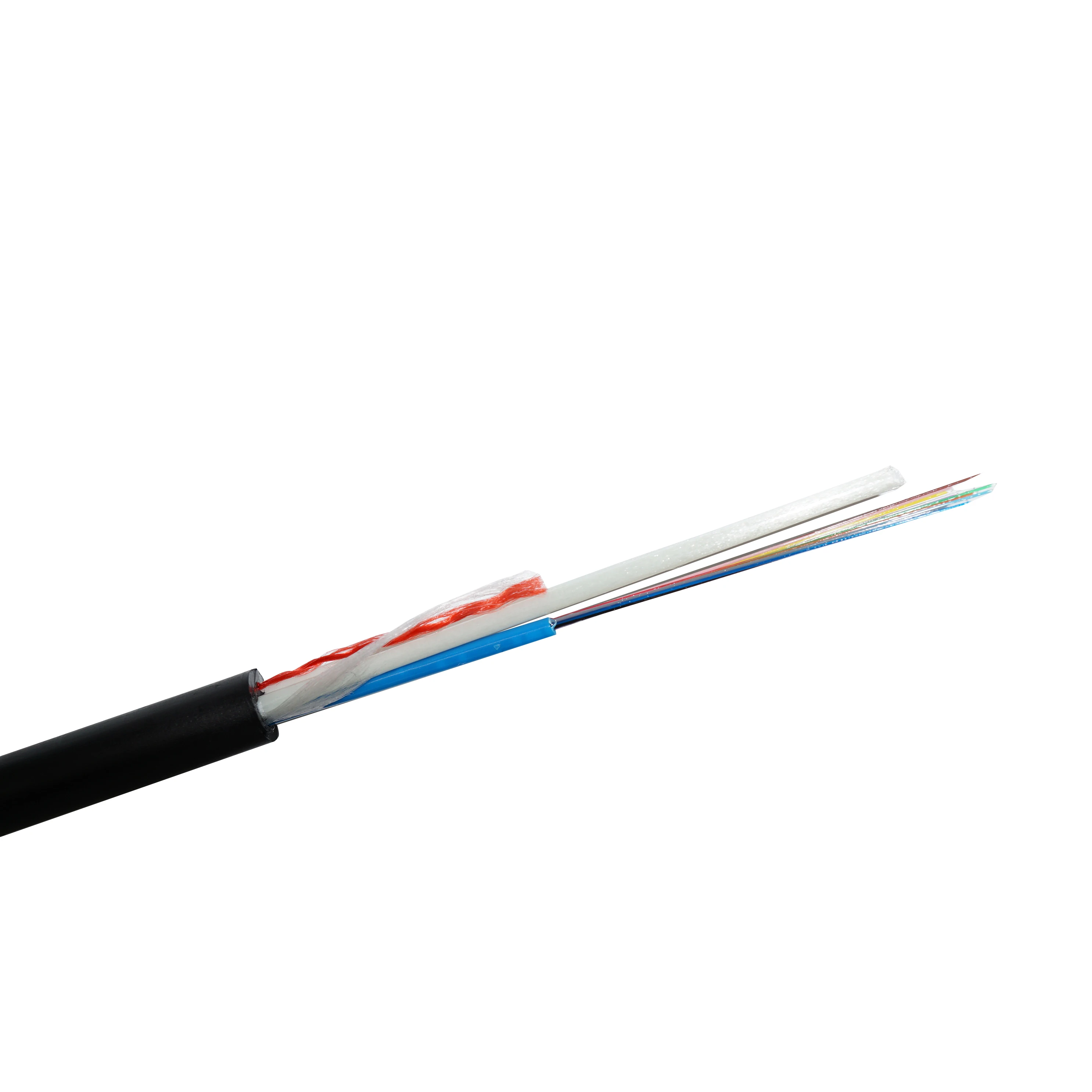

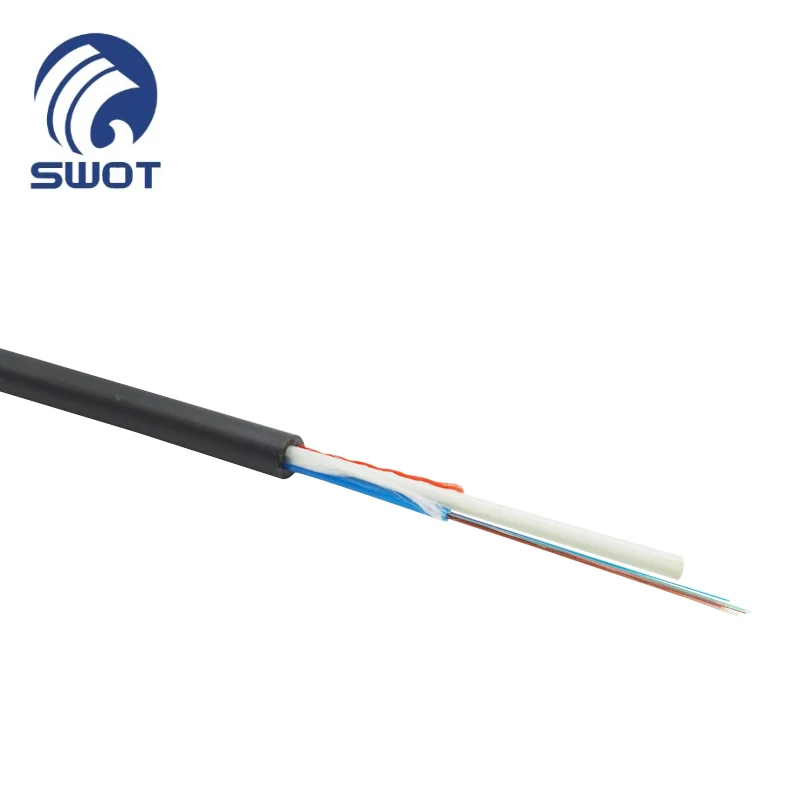

Outdoor Fiber Optic Cable GYFXTY-12B1
Feature
* Non-metal design can prevent the cable from radio interference and magnetic wave interference
* Central tube filling compound ensure good moisture resistance performance
* Central tube filling compound ensure good moisture resistance performance
Technical data
No. of cable | 1-12 | ||||
Fiber Model | G.652D | ||||
Strength Member | Material | FRP | |||
Diameter（±0.05）mm | 1.8 | ||||
Loose Tube | Material | PBT | |||
Diameter（±0.06）mm | 1.8 | ||||
Thickness（±0.03）mm | 0.35 | ||||
The Max.Core NO./Tube | 12 | ||||
Outer Sheath | Material | PE | |||
Cable Diameter（±0.2）mm | 6.7 | ||||
Cable Weight（±5）kg/km | 38 | ||||
Min. bending radius | Without Tension | 10.0×Cable-φ | |||
Under Maximum Tension | 20.0×Cable-φ | ||||
Temperature range （℃） | Installation | -20~+60 | |||
Transport&Storage | -40~+70 | ||||
Operation | -40~+70 | ||||
Fiber Color
Sheath Marking
The color of marking is white, but if the remarking is necessary, the white color marking shall be printed newly on a different position.
An occasional unclear of length marking is permitted if both of the neighboring markings are clear.
The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
An occasional unclear of length marking is permitted if both of the neighboring markings are clear.
The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
