Customized cable fibre optic outdoor 24 core fiber optic cable with glass yarn GYFSTH
Product Description
GYFSTH Fiber Optic Cable single outer sheath

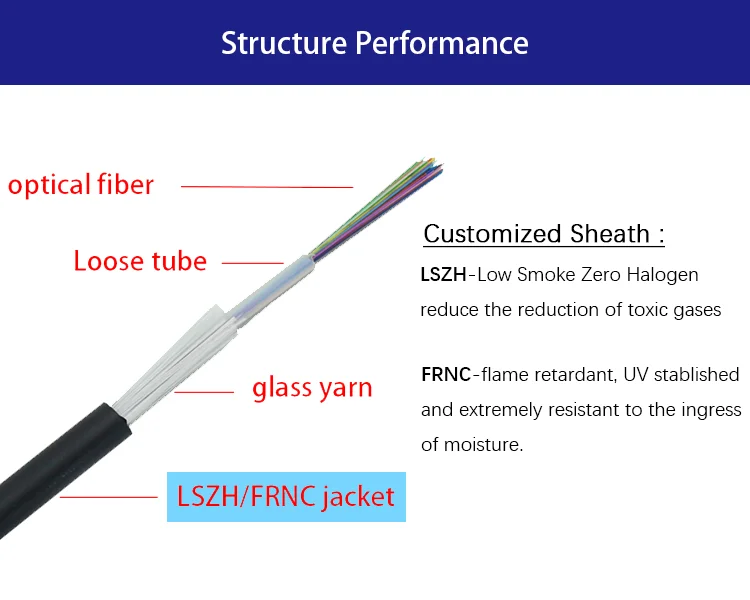

The cable consists of a single central gel filled uni-tube containing individually colour coded 250 μm buffered fibers. This tube is embedded in a water blocking E-glass yarn, and over sheathed with PE/PVC/LSZH (Low Smoke Zero Halogen) outer jacket. The jacket is flame retardant, UV stabilised and extremely resistant to the ingress of moisture.
A choice of multimode and single mode fiber types and specifications are offered with fiber counts from four to twenty four in the standard range.
Feature
1.Can be installed without shutting off the power.
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
3.Good performance of tensile strength and temperature.
4.The cable life is 30 years.
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
3.Good performance of tensile strength and temperature.
4.The cable life is 30 years.
Technical data
Item | Data | ||
No. of cable | 2-24 | ||
Fiber Model | G.652D | ||
Loose tube | Material | PBT | |
Diameter（±0.03）mm | 0.35 | ||
Thickness（±0.06）mm | 3.0 | ||
Outer Sheath | Material | LSZH | |
Thickness（±0.2）mm | 1.3 | ||
Cable Diameter（±0.2）mm | 6.4 | ||
Cable Weight（±5）kg/km | 49 | ||
Min. bending radius | Without Tension | 15.0×Cable-φ | |
Under Maximum Tension | 20.0×Cable-φ | ||
Temperature range（℃） | Installation | -5~+50 | |
Transport&Storage | -30~+70 | ||
Operation | -20~+70 | ||
