Supply high quality ADSS optic cable single jacket 48 core optical fiber cable self-supporting aerial cable

Product Description

Product Description

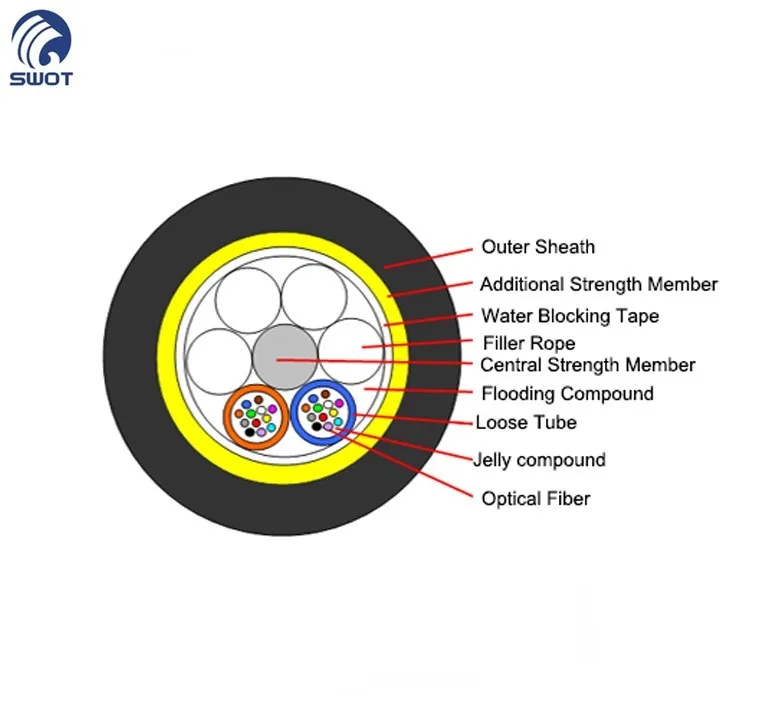

 ADSS Fiber Optic Cable single outer sheath

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, stranded layer of aramid yarns are applied over the loose tube as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Feature

1.Can be installed without shutting off the power
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
3. Under span 200 meter lengths
4.Good performance of tensile strength and temperature
5.The cable life is 30 years
6.Package : 2~4km/ wooden drum or as customer request



Application


1. Outdoor aerial applications
2. Low voltage transmission system(≤12 kV)
3. Railway & Telecommunication pole route
4. Subscriber & Local Area Network
5. Voice, data, video & imaging system

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. For power lines equal to or over 110kV. AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

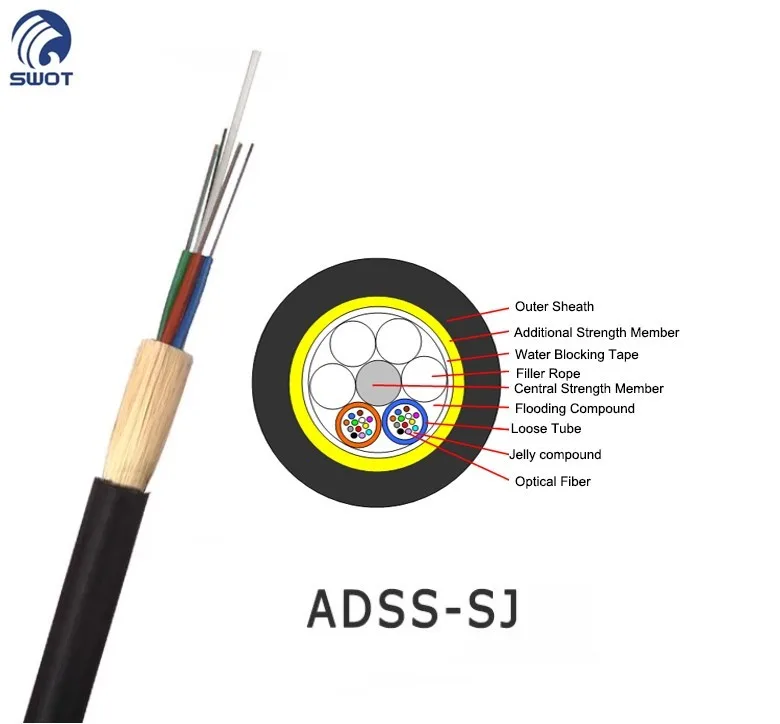

Product Image

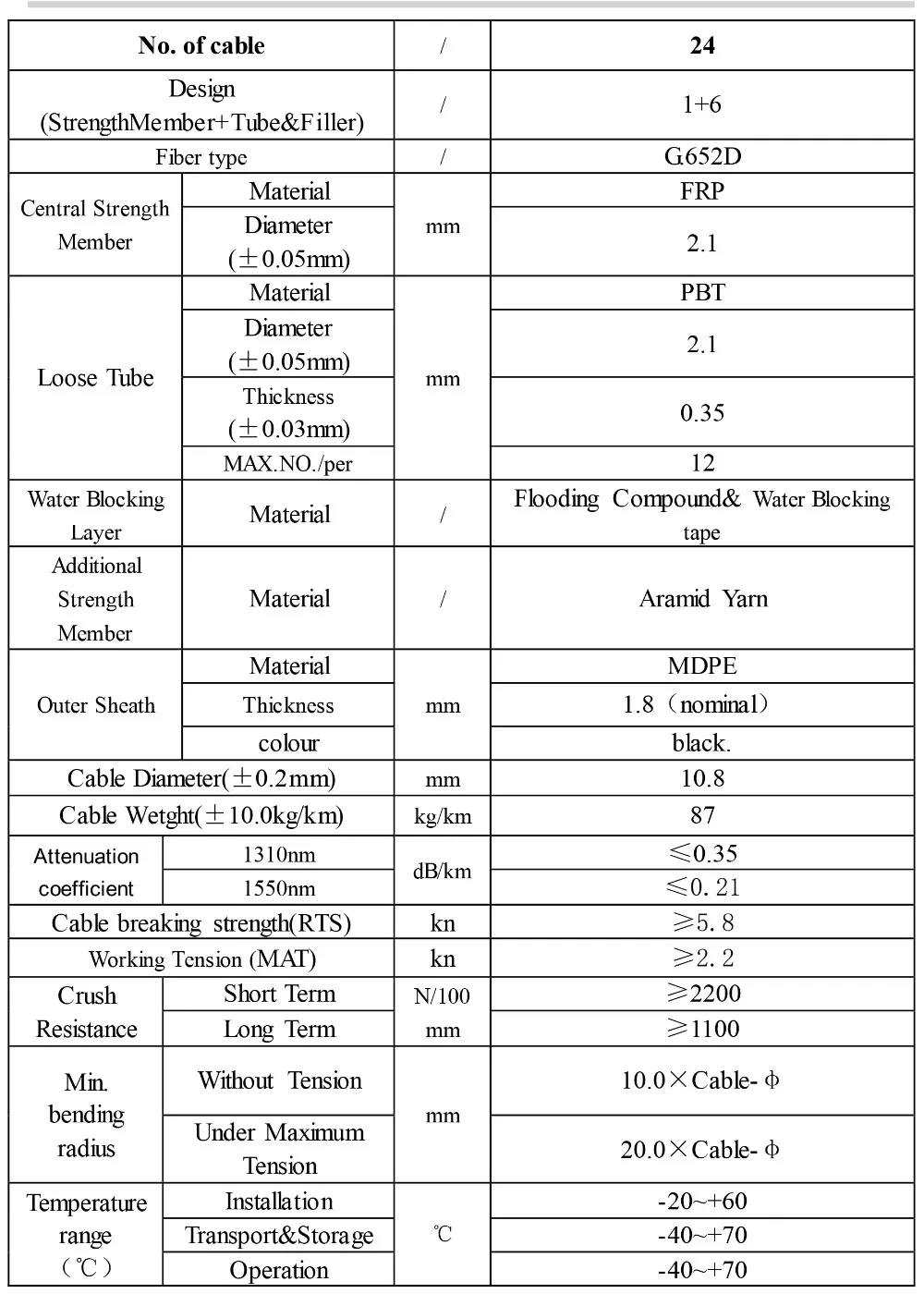

Technical Data

Fiber Colors

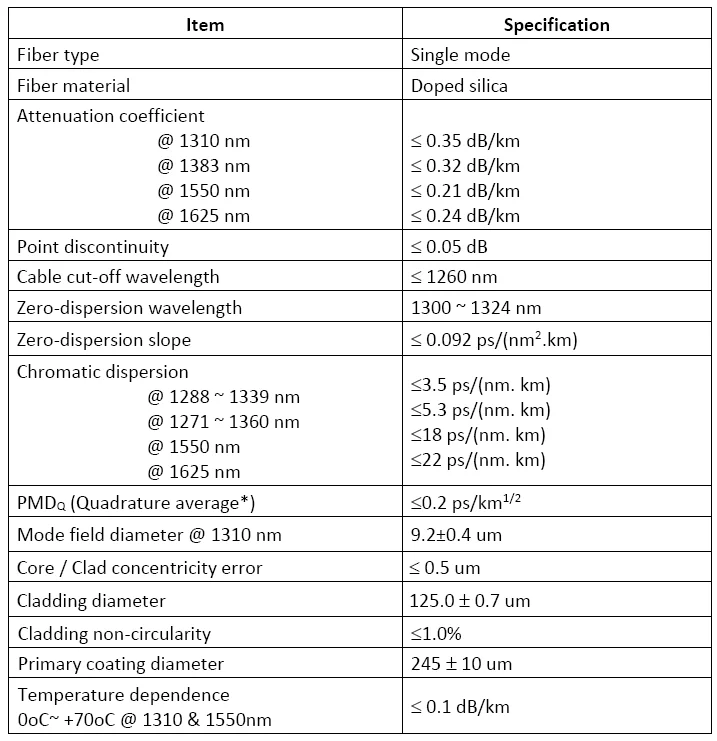

The properties of single mode Optical Fiber (ITU-T Rec. G.652.D)

Main mechanical & environmental performance test

Item
Test Method
Acceptance Condition
Tensile Strength
IEC 794-1-2-E1

- Load: Short term tension

- Length of cable: about 50m

- Loss change  0.1 dB @1550 nm

- No fiber break and no sheath damage.

Crush Test
IEC 60794-1-2-E3

- Load: Short term crush

- Load time: 1min


- Loss change  0.05dB@1550nm

- No fiber break and no sheath damage.

Impact Test
IEC 60794-1-2-E4
- Points of impact: 3

- Times of per point: 1

- Impact energy: 5J

- Loss change  0.1dB@1550nm

- No fiber break and no sheath damage.

Temperature
 Cycling Test
YD/T1460-2006

- Temperature step:

+20oC→-40oC→+70oC →+20oC

- Time per each step: 12 hrs

- Number of cycle: 2

- Loss change  0.05 dB/km@1550 nm
- No fiber break and no sheath damage.
