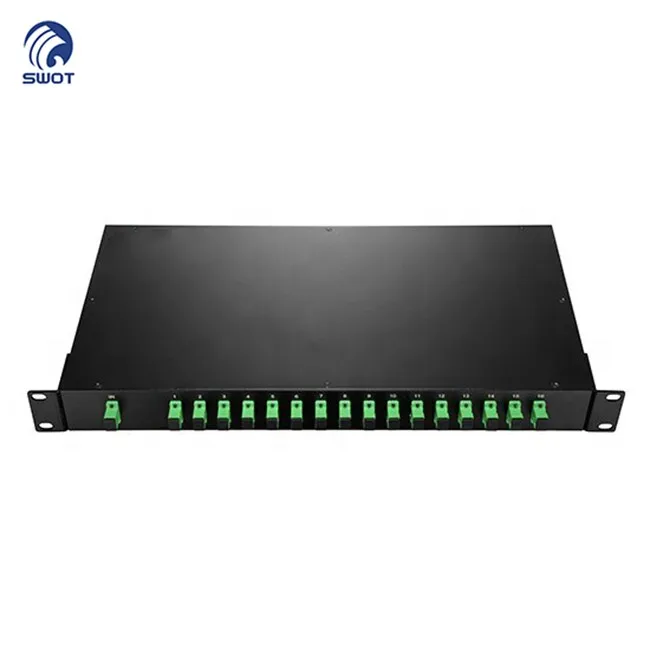

19" 1U rack mounted fiber optic plc splitter 1x16 SC APC
Product Description
Description
Product Details Features* Excellent Mechanical,Small Size
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used
Application* FTTx Deployments(GPON/BPON/EPON)
* Cable television (CATV)
* Local area networks (LAN)
* Test equipment
* Passive optical networks(PON)
Specification
Company Profile


Shanghai Wanbao Optical Technologies Co., Ltd. is a hi-tech enterprise having a self-owned brand and specializing in the R&D, manufacture and sales of fiber optical communications equipment. The main products of Wanbao include fiber optic cables, FTTH cables, fiber optic patch cords, connectors, adapters, optical couplers, attenuators, optic media converters, optic splice closures, optic terminal boxes, ODF, etc. Our products are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License form Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standards, which ensures the reliability and makes them sell very well in not only the domestic market but also the overseas market. Wanbao was established in 2012, and is growing rapidly. Now our company covers a workshop area of about 1200 square meters, and has more than 100 workers. The production capacity of fiber optic connectors is about 600,000pcs per month. Our company controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantages are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service. Many international exhibitions upgraded "WANBAO" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of winner. In the next five years, Wanbao will keep the strategic pattern of development -- "based in South China, penetrate into the whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. Wanbao -- Your Honest Team, will be always ready for you.

Accessories FactoryCable FactoryBox Factory
FAQ Q1. Can I have a sample order for PLC splitter?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PLC Splitter?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Vivian Zhou
Tel/Fax : 0086-21-52188985
Mobile : 0086-13681746044
Email : vivian@wboptictech.com
Skype : vivian.zhou606 Contact us if you need more details on Rack Mounted Plc Splitter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 1x16 Plc Fiber Splitter、Ftth 1 16 Plc Splitter. If these products fail to match your need, please contact us and we would like to provide relevant information.

Setting Information | ||
Type | 1x16 , 1U 19" Rack Mount Splitter | |
Fiber | SC/APC, G657A1 | |
Length | 1M, 2M, 3M or as your request | |
Cable Sheath | PVC | |
Cable Diameter | 2.0 mm | |
Wavelength | 1260~1650mm | |
Splittr Size | 100*80*10mm | |
Warranty | at least 30 years |
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used
Application* FTTx Deployments(GPON/BPON/EPON)
* Cable television (CATV)
* Local area networks (LAN)
* Test equipment
* Passive optical networks(PON)


1xN PLC Splitter Specification | |||||||||||
Operating Wavelength(nm) | 1260~1650 | ||||||||||
Fiber Type | G657A1 or as customers' request | ||||||||||
Port Configuration | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | |||||
Insertion Loss (dB) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |||||
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | |||||
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.23 | 0.3 | 0.35 | |||||
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |||||
Temperature Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |||||
Return Loss (dB) | 50/55 | ||||||||||
Operating/Storage Temperature | -40~+85 | ||||||||||
Directivity (dB) | ≥ 55 |










Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PLC Splitter?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Tel/Fax : 0086-21-52188985
Mobile : 0086-13681746044
Email : vivian@wboptictech.com
Skype : vivian.zhou606 Contact us if you need more details on Rack Mounted Plc Splitter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 1x16 Plc Fiber Splitter、Ftth 1 16 Plc Splitter. If these products fail to match your need, please contact us and we would like to provide relevant information.
