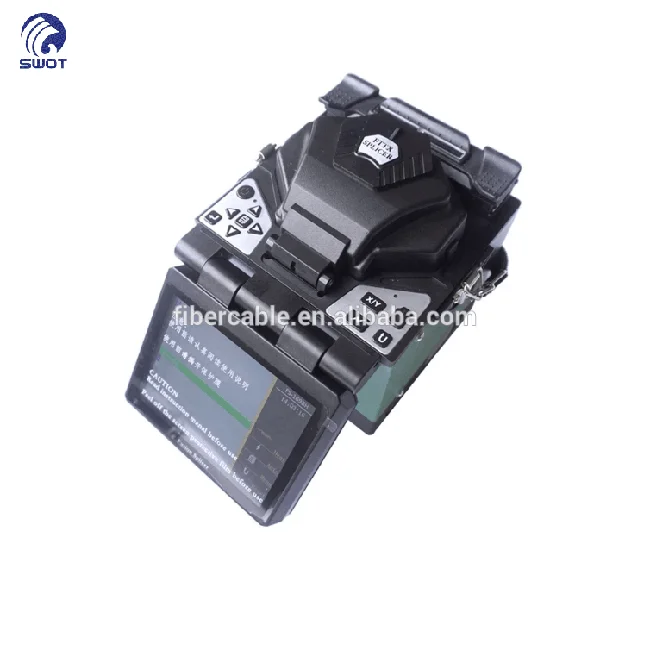

low price FTTH termination tool kit fusion splicer machine fusionadora fibra optica 1698H

Product Description

Product Description Fusion Splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SWOT FS-1698H is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Features >  5 inches high resolution colorful LCD display, image can be turned according to position
>  Average splice time: 9 seconds
>  Average tube-heat time: 25 seconds
>  Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
>  X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
>  Cutting-edge technology for image processing
>  New developed technology providing strong wind and dust resistance
>  Splicing mode: Auto & Manual & Full-Auto
>  USB Port
>  Storing 6,000 groups of latest splice results
>  New technology of fiber core alignment, enhanced accuracy
>  New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
>  New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector).
Applicable Fibers
SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire),
SC/LC/FC connector (optional function)
Average Splice Loss
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss
Tension Test
Typical splicing time
9 seconds
Typical heating time
25 seconds
Splicing Program
50 groups
Protection Sleeve Length
20mm, 40mm, 60mm
Operating Language
Chinese, English, French, Portuguese, Spanish
Operating Conditions
-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)                     Inner lithium battery: 11.1V, 5.2AH
5 inches high resolution colorful LCD display
Fiber Image Magnification
X or Y axis Separately views 400 times magnification, or Simultaneously 220 times
Storage of Splice Result
6,000 groups of latest splice results
Splicing Model
Auto & Manual & Full Auto
3-in-1 cutting fixture; Multipurpose 1+N fixture (T-1698HF, for SC/LC/FC connector)
130(W)*135(D)*130(H)mm;                               Package size: 53*32*30cm
1.74kg+0.38kg (battery weight)=2.12kg;            Package G.W.: 6.03 kg
Applicable Fibers
SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire),
SC/LC/FC connector (optional function)
Average Splice Loss
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Standard packing
Machine FS-1698H
Fiber Cleaver
Fiber Stripper
AC Adaptor (Charger)
Cooling Tray
Instruction CD
Quick Reference Guide
Rubber-insulated wire stripping pliers
Rubber-insulated wire 3-in-1 cutting fixture
Carrying Case with Carrying Strap
*Custom-made Professional anti-shock tool kit (case) with sponge inside

*Export-standard Carton Box with PE Foam inside (53*32*30cm)

*FS-1698H F= FS-1698H + SOC fixture(for SC/LC/FC connector)
