Outdoor plastic pole mounted 16 port fiber optical terminal distribution box IP65

Product Description

Wanbao factory Fiber Optic Distribution Box FTT-GFS-16F

DESCRIPTION

1.The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
2.The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

FEATURES

1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC Splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.


APPLICATION

Widely used in FTTH access network.

Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

SPECIFICATION

1. Environmental requirement
Working temperature: -40℃~+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa

2. Main technical datasheet

 Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
APC return loss: ≥60dB

3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2´104MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

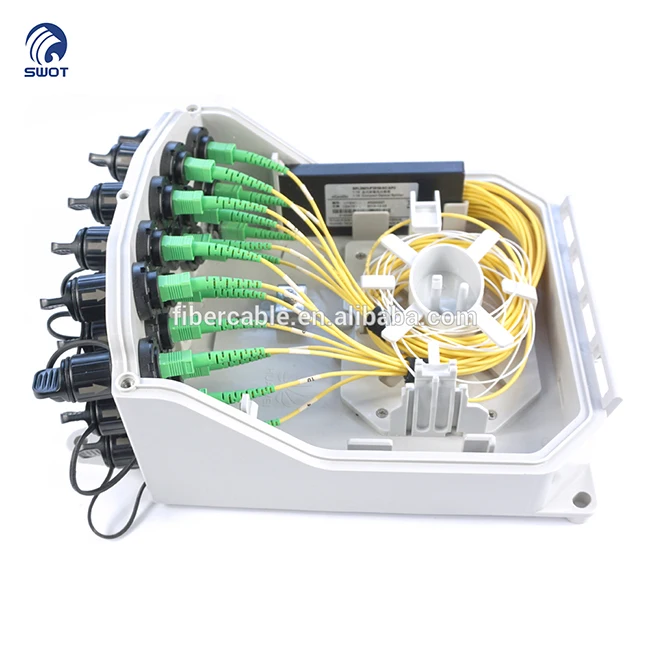

DETAILED IMAGES

More FTTH Box
Our Company
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
