factory direct supply 12 core drop cable PE/LSZH sheath GYFXTY-TY

Product Description

Product Description

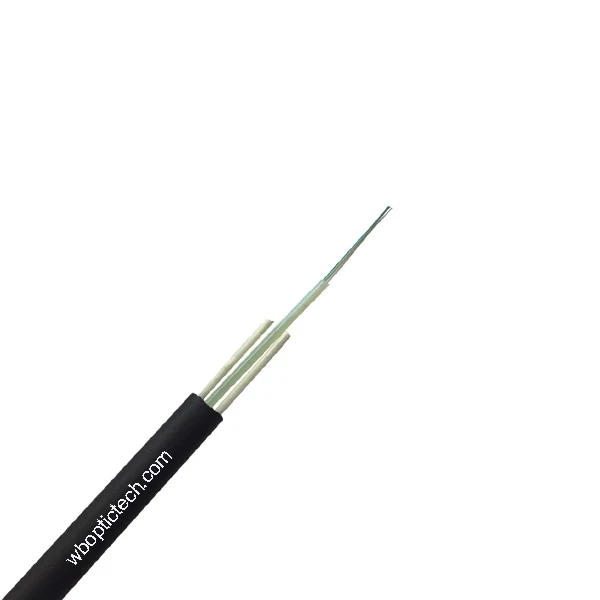

The cable consists of a central loose tube, filled with a synthetic oil based jelly, non-nutritive to fungus, electrically non-conductive, homogeneous and free from dirt and foreign matter, containing up to 12 optical fibres.


Two Fiber Reinforced Plastics (FRP) elements are longitudinally applied parallel with the tube, and an outer black PE sheath, UV resistant.


Feature

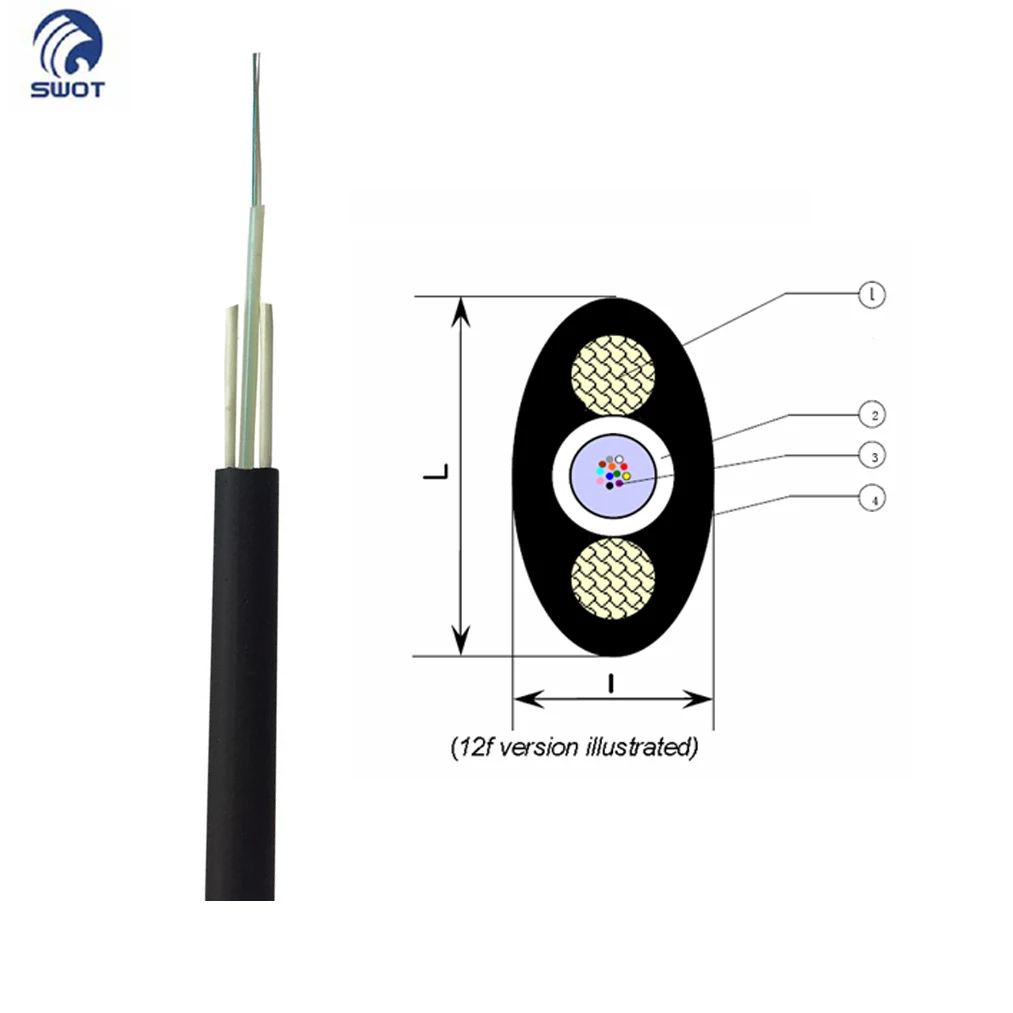

1- Dielectric strength member (GRP)
2- Plastic loose tube, jelly filled
3- Optical fibres
4- MDPE or HDPE outer sheath

Cable Nominal Width (L): 8.3 mm
Cable Nominal Thickness (l): 4.8 mm
Cable Maximum Weight: 45.0 kg/km

Performance


The cables are suitable for installation in “pipeline” systems, aerial on walls and aerial on poles, with up to 50 meters
span and minimum 1% installation sag. The cables withstand the additional loads generated by wind and ice in the following environmental conditions:
(a) temperature –5°C, wind speed 100 km/h
(b) temperature –20°C , wind speed 50 km/h , ice radial thickness 8 mm
The use of proper fittings, as recommended by WANBAO, is adviceable in order to achieve the mentioned performance.


Technical Data
Up to12 FO
Static Load (for 5 minute)
400N
Dynamic Load
1000N
Crush
1000N/100mm
Impact
5N.m
Bending Radius (dynamic)
20 x cable OD
Bending Radius (static)
15 x cable OD
Water penetration
pass
Operating temperature range (°C)
-40°C / +70°C
Installation temperature range (°C)
-10°C / +50°C
Storage temperature range (°C)
-40°C / +70°C
