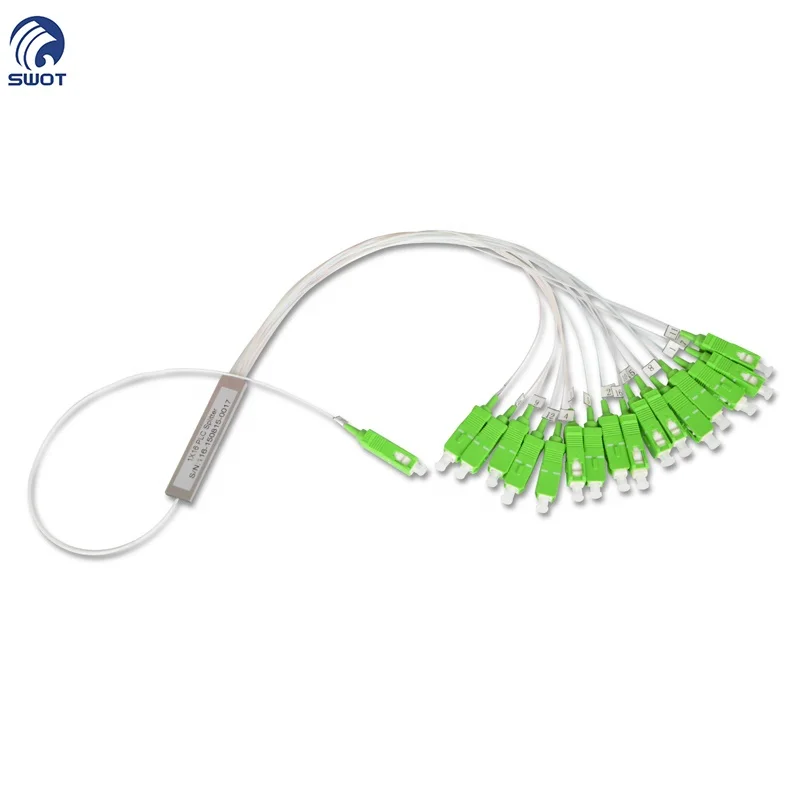

Wanbaov supply free sample 1x16 LC SC plc splitter 16 ways micro steel tube plc splitter

Product Description

Feature

1.Mini type PLC Splitter's input and output tube diameter is 900um
2.Compact size, compare to the other PLC Splitter, Mini PLC Splitter's structure is smaller

Application

1.FTTx Deployments(GPON/BPON/EPON)
2.Cable television (CATV)
3.Local area networks (LAN)
4.Test equipment
5.Passive optical networks(PON)

Specatification

The detail information are in the forms below

1xN PLC Splitter Specification
Operating Wavelength
1260~1650(nm)
Fiber Type
G657A1 or as customers' order
Port Configuration
1x2
1x4
1x8
1x16
1x32
1x64
1x128
Insertion Loss (dB)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85
2xN PLC Splitter Specification
Operating Wavelength
1260~1650(nm)
Fiber Type
G657A1 or as customers' order
Port Configuration
2x2
2x4
2x8
2x16
2x32
2x64
2x128
Insertion Loss (dB)
4.0
7.6
11.0
14.4
17.5
21.0
24.5
Loss Uniformity (dB)
0.6
1.0
1.2
1.5
1.8
2.2
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.35
0.4
0.4
Wavelength Dependent Loss(dB)
0.3
0.4
0.5
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85
Profile Size

Different Mini Module PLC Splitter has different size, the details are as below( Units: mm)

1x2 (LxWxH) is 60x7x4
1x4 (LxWxH) is 60x7x4
1x8 (LxWxH) is 60x7x4
1x16 (LxWxH) is 60x12x4
1x32 (LxWxH) is 80x20x6
1x64 (LxWxH) is 100x7x6

2x2 (LxWxH) is 60x7x4
2x4 (LxWxH) is 60x7x4
2x8 (LxWxH) is 60x7x4
2x16 (LxWxH) is 60x12x4
2x32 (LxWxH) is 80x12x6
