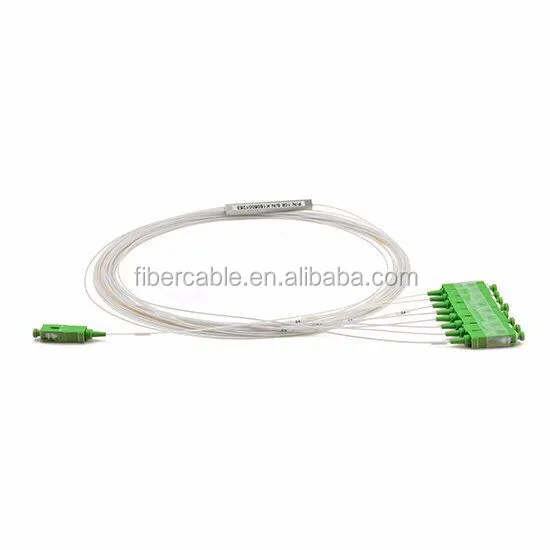

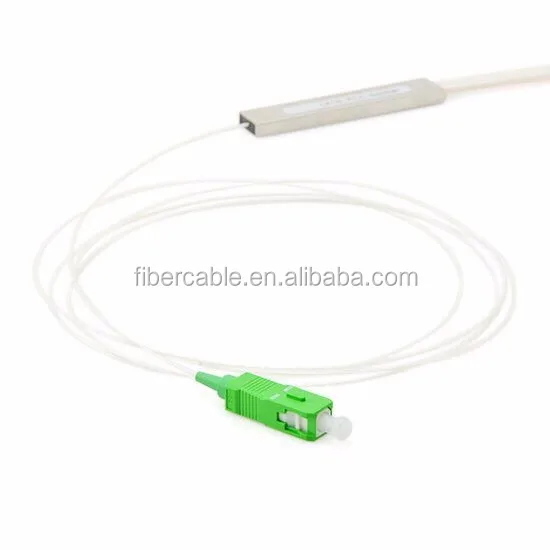

FTTH 1x8 SC/APC G657A1 Steel Tube PLC Splitter/ Mini Steel Tube PLC splitter
Product Description
Description
Product Details Features* Excellent Mechanical,Small Size
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used
Application* FTTx Deployments(GPON/BPON/EPON)
* Cable television (CATV)
* Local area networks (LAN)
* Test equipment
* Passive optical networks(PON)


Specification

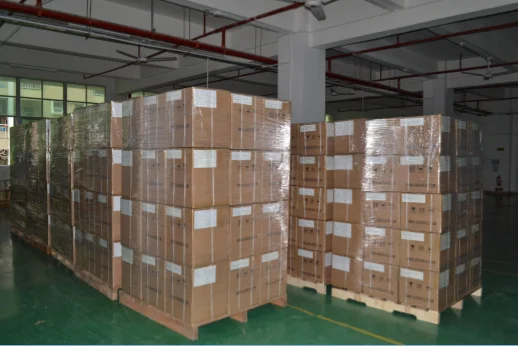

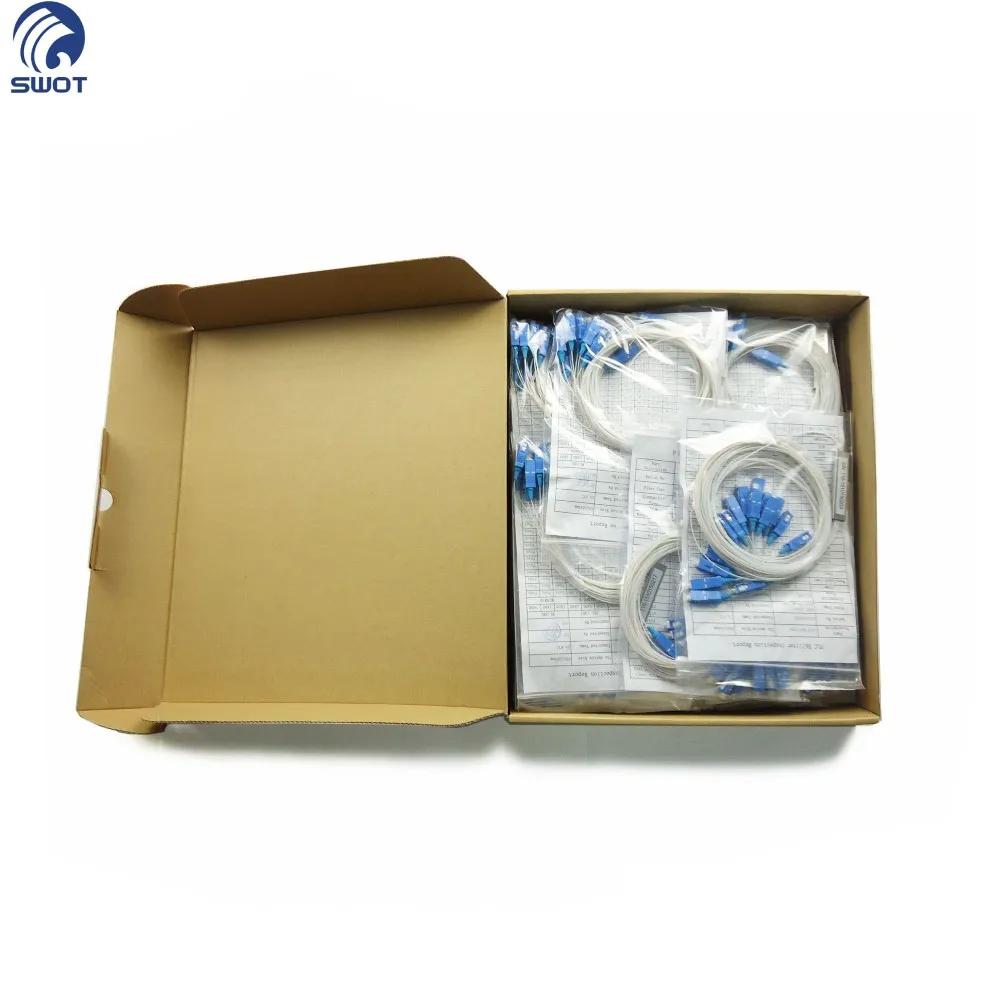

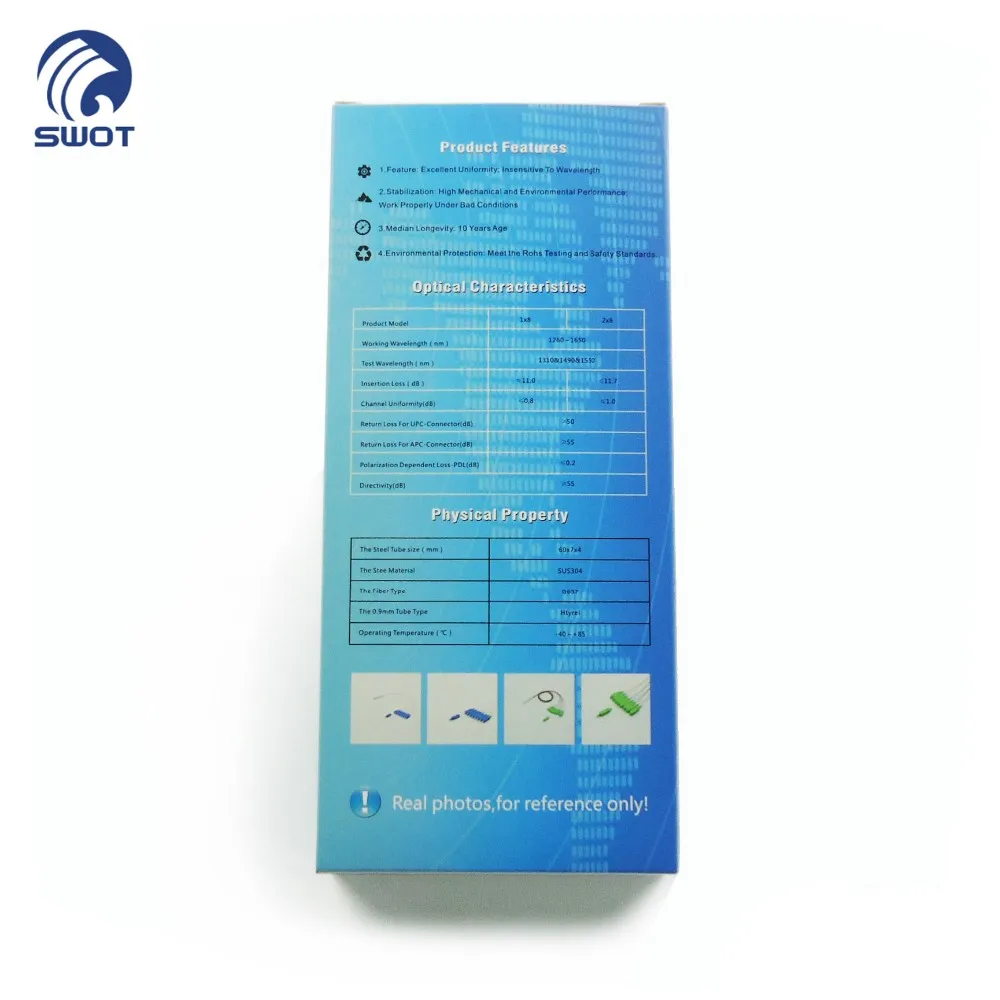

Package 1) If by Air or by DHL, TNT FEDEX, eat express, we suggest use small package method.
1 pce/plastic bag. 60 bags/carton
2)If by Sea, we suggest you use standard package.Customized extra hard cardboard box with thick foam board. will provide maximum protection during the shipping.



view more >>Recommended by sellerManufacturing Anatel ASU outdoor 12 core single mode Fiber Optic Cable all- dielectric optic cable with ripcord$188.41 / Kilometer2 Kilometers Company Information


FAQ Q1. Can I have a sample order for PLC splitter?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PLC Splitter?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to customize package?
A: Yes. Please inform us your request.
Q7: Do you offer guarantee for the PLC Splitter?
A: Yes, we offer 30 years warranty to our products.
Contact us if you need more details on 1x8 Steel Tube Plc Splitter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 1x8 Optical Splitter、Sc Apc Optical Splitter. If these products fail to match your need, please contact us and we would like to provide relevant information.

Setting Information | ||
Type | 1*8 SC/APC | |
Fiber | SM G657A1 | |
Length | 1M, 2M, 3M or as your request | |
Cable Sheath | PVC | |
Cable Diameter | 0.9mm | |
Wavelength | 1260~1650mm | |
Size | 100*80*10mm | |
Warranty | at least 30 years |
* High Reliability
* Low insertion Loss and low Polarization Dependent loss
* High channel counts
* Excellent Environmental Stability and Widely Used
Application* FTTx Deployments(GPON/BPON/EPON)
* Cable television (CATV)
* Local area networks (LAN)
* Test equipment
* Passive optical networks(PON)




1xN PLC Splitter Specification | |||||||||||
Operating Wavelength(nm) | 1260~1650 | ||||||||||
Fiber Type | G657A1 or as customers' request | ||||||||||
Port Configuration | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 | |||||
Insertion Loss (dB) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |||||
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | |||||
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.23 | 0.3 | 0.35 | |||||
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |||||
Temperature Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |||||
Return Loss (dB) | 50/55 | ||||||||||
Operating/Storage Temperature | -40~+85 | ||||||||||
Directivity (dB) | ≥ 55 |
1 pce/plastic bag. 60 bags/carton
2)If by Sea, we suggest you use standard package.Customized extra hard cardboard box with thick foam board. will provide maximum protection during the shipping.








Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PLC Splitter?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to customize package?
A: Yes. Please inform us your request.
Q7: Do you offer guarantee for the PLC Splitter?
A: Yes, we offer 30 years warranty to our products.
Contact us if you need more details on 1x8 Steel Tube Plc Splitter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 1x8 Optical Splitter、Sc Apc Optical Splitter. If these products fail to match your need, please contact us and we would like to provide relevant information.
