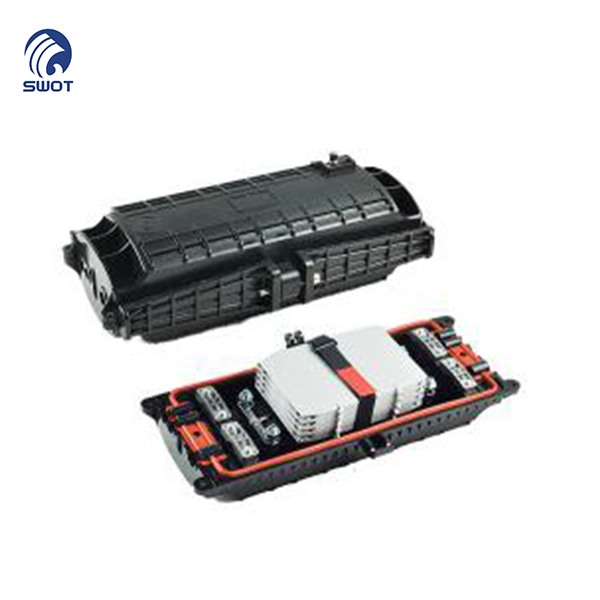

Supply horizontal type fiber optic splice closure fiber optic cable joint box H007

Product Description Feature:1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.

The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.
Remark:Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for ribbon or bunchy fiber, internal metal stainless steel,etc.

Model	H007
Outside dimension (LxWxH)	450x220x110 (mm)
Weight (excluding outside box)	2800g-3300g
Number of inlet/outlet ports	4 pieces on each side (total 8 pieces)
Diameter of fiber cable	Φ7-Φ20(mm)
Capacity of FOSC	Bunchy: 12-96 (Cores) Ribbon: max. 144 Cores

H007 splice tray
Bunchy Capacity	single:12 cores  double:24 cores
Ribbon Capacity	6 pieces
Size (L×W×H)	160mm*106mm*10mm

Main Components

No.	Name of components	Quantity	Usage	Remarks
1	Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 340x122 (mm)
2	Insert plate	2 pairs	Fixing the housing	175x56x30(mm)
3	Fiber optic splice tray (FOST)	Max 5 pieces (bunchy) or 4pcs ( ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:12,24(cores) Ribbon:3 (pieces)
4	Foundation	1 set	Fixing reinforced core of fiber cable and fiber optic splice tray (FOST)
5	Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
6	Port plug	6 pieces	Sealing empty ports
7	Pressure testing valve	1 set	After injecting air it is used for pressure testing and sealing testing	Configuration as per requirement
8	Earthing deriving device	1 set	Deriving metallic components of fiber cable in the FOSC for earthing	Configuration as per requirement

Main Accessories

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing devices
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special wrench	3 pieces	Fixing bolts, tightening nut of reinforced core
10	Measuring paper	1 piece	To measure circle, of which its diameter is enlarged with seal tape
11	Buffer tube	customerized	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
